Longitudinally Welded Stainless Steel Dairy Tube DIN 11850 Standard with EN 10204/3.1B Inspection Certificate and Corrosion Resistant 1.4404/316/316L

Material : 1.4404 /316/316L

Out Diameters : 6mm~2500mm

Application : Seawater heat exchanger tubes and seawater desalination plant pipes

Size : 10inch wall thickness : 1.000 inch

Polish : Satin,Bright or Mirror

Brand Name : Best

Model Number : 1/2''-48''

Certification : API/CE/ISO /TUV/PED

Place of Origin : China /Japan

MOQ : 1Pcs

Price : 500 usd/Ton

Payment Terms : L/C/ TT

Supply Ability : 1000000 Ton/year

Delivery Time : 5-8 working days

Packaging Details : standard export packing or as required

Standard : EN 10217-7 TC1 D3/T3/ ASTM A269

Contact Now

Longitudinally Welded Stainless Steel Dairy Tubes According to DIN 11850
Inspection certificate as per EN 10204/3.1B
Product Specifications
Dimensions: 4-610 mm
Wall Thickness: 1.6 - 80 mm
Specifications & Materials
Standard: EN 10216-5
Material Grades:
  • 1.4301 / 1.4306 / 1.4948
  • 1.4541 / 1.4878
  • 1.4550
  • 1.4401 / 1.4404 / 1.4435
  • Molybdenum: 1.4571
  • 1.4845
  • 1.4462
  • 1.4501
  • 1.4539
Size Range: 1/8″ - 24″
Schedule: SCH 10s - SCH XXS
ASTM/ASME Standards
ASTM/ASME A/SA 312/312M
  • TP 304 / 304L / 304H
  • TP 321 / 321H
  • TP 347 / 347H
  • TP 316 / 316L / 316L - High
  • TP 316Ti
  • TP 310S
  • DUPLEX - UNS S31803
  • SUPERDUPLEX - UNS S32760
  • TP 904L - UNS N08904
Related Products
TEVI FARA SUDURA PENTRU TEMPERATURI SCAZUTE
TEVI FARA SUDURA DIN INOX
Technical Specifications - Heat Resistant Steels
PN EN Werkstoff nr AISI
St41KP265GH1.0425
St36KP235GH1.0345
16M16Mo31.5415
15HM13CrMo4-51.7335P12
10H2M10CrMo9-101.7380P22
13HMF13CrMoV9-101.7703
21HMF21CrMoV5-71.7709
X10CrMoVNb9-1X10CrMoVNb9-11.4903P91
Stainless Steel 316L Pipes & Tubes
Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V
Size: 1/8″NB TO 30″NB IN
ERW 316L Pipes & Tubes: 1/2″ NB - 24″ NB
EFW 316L Pipes & Tubes: 6″ NB - 100″ NB
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
TP 316L Stainless Steel Chemical Composition
Grade C Mn Si P S Cr Mo Ni N
316L min: -
max: 0.08		 min: -
max: 2.00		 min: -
max: 0.75		 min: -
max: 0.045		 min: -
max: 0.03		 min: 16.0
max: 18.0		 min: 2.00
max: 3.00		 min: 10.0
max: 14.0		 min: -
max: 0.10
TP 316L Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness Rockwell B (HR B) max Hardness Brinell (HB) max
316L 485 170 40% 95 217
Longitudinally Welded Stainless Steel Dairy Tube DIN 11850 Standard with EN 10204/3.1B Inspection Certificate and Corrosion Resistant 1.4404/316/316L

Product Tags:

stainless steel dairy tubes DIN 11850



welded stainless steel boiler pipes



dairy tubes with inspection certificate


Wholesale Longitudinally Welded Stainless Steel Dairy Tube DIN 11850 Standard with EN 10204/3.1B Inspection Certificate and Corrosion Resistant 1.4404/316/316L from china suppliers

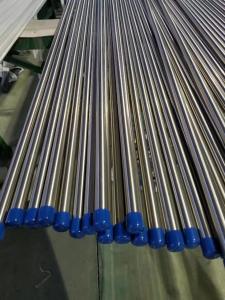

Longitudinally Welded Stainless Steel Dairy Tube DIN 11850 Standard with EN 10204/3.1B Inspection Certificate and Corrosion Resistant 1.4404/316/316L Images
